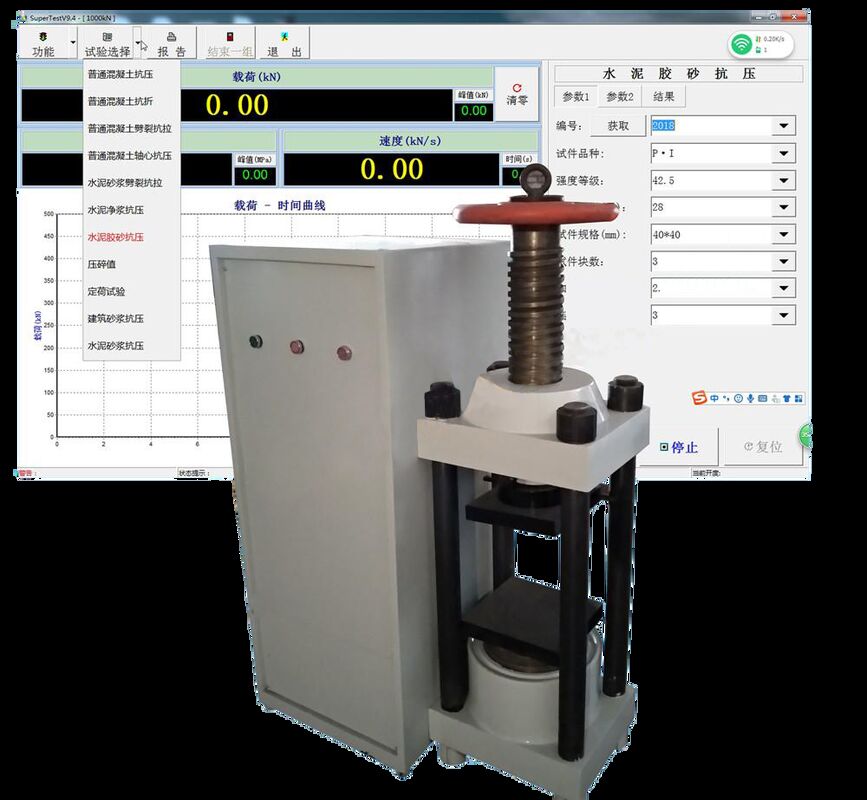

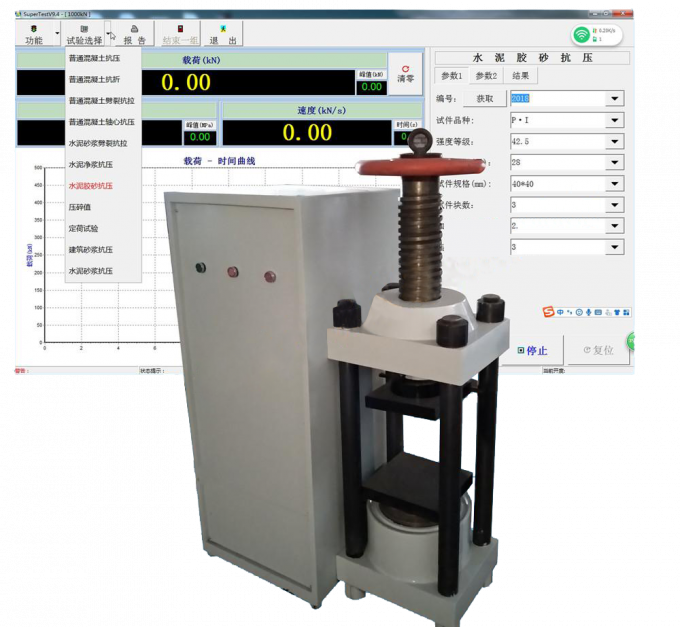

Name: C112 Rock Uniaxial Compression Deformation (Rebound Modulus) Tester
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: C112
Price: 12000 USD
Availability: InStock

Inicio Productos máquina de ensayo de rocas

C112 Rock Uniaxial Compression Deformation (Rebound Modulus) Tester

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	zealchon
Certificación:	CE ISO
Número de modelo:	C112

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	$12000
Detalles de empaquetado:	caja de madera
Tiempo de entrega:	7DÍAS
Condiciones de pago:	LC, T/T, Western Union, MoneyGram
Capacidad de la fuente:	100sets/mes

Contactar ahora

Descripción detallada del producto

Fuerza de prueba definitiva:	300kN 1000kN 2000kN.	plantilla para partir rocas:	φ25×100mm φ50×100mm φ100×100mm
Accesorio de corte de ángulo variable para roca:	φ50×50mm 50×50mm φ70×50mm 70×50mm	Dispositivo de resistencia a la flexión y a la tracción de rocas.:	Fijación de tres puntos: 50×50×250 mm
Carrera límite del pistón del cilindro:	50mm

Product Description

Specification

C086-A Rock Uniaxial Compressive Strength Tester
1. Purpose of the test: The uniaxial compressive strength test is a method for determining the uniaxial compressive strength of regular-shaped rock specimens, and is mainly used for strength classification and lithology description of rocks. This method uses the compressive strength of a rock cube (or cylinder) specimen in a saturated state to evaluate rock strength (including the original rock strength of gravel or pebbles). In some cases, the water-containing state of the specimen can also be selected from the natural state, the dried state or the state after freeze-thaw cycles according to the needs. The water state of the test piece shall be indicated in the test report. Draw the stress-strain whole process curve; it can automatically collect, store, process and display the test data and test curve in real time during the test, and can optionally print the test report. 2. Performance characteristics and functions 1. The rock uniaxial compression tester is mainly composed of host compression, automatic control system unit, computer and special software data acquisition system unit, etc. 2. The rock uniaxial compression tester uses a servo/frequency conversion motor to drive the oil source, and the oil cylinder moves up and down to realize the test loading process. The instrument adopts advanced full-digital closed-loop control system for control and measurement, uses computer for dynamic display of test process and test curve, and performs data processing. After the test, data can be re-analyzed and edited, and the product performance reaches ..** level. 3. Functions of rock uniaxial compression tester (1) Constant loading force (2) Load and collect force values, measure peak tracking, and measure residual force values 3. Software interface

item	value
Warranty	1 Year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	ZEALCHON
Model Number	C112
Power	Hydraulic
Ultimate test force	300kN 1000kN 2000kN.
Rest accuracy	level 1
Test force measuring range	0.4%~....FS
Cylinder piston. Large stroke	50mm
Upper and lower platen. Large distance	320mm

Packing & Delivery

Company Profile

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?

We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;

Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese
