B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer

B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer

    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
  • B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer

    Datos del producto:

    Lugar de origen: Porcelana
    Nombre de la marca: zealchon
    Certificación: CE ISO
    Número de modelo: B002-B

    Pago y Envío Términos:

    Cantidad de orden mínima: 1 juego
    Precio: $9000
    Detalles de empaquetado: CAJA DE MADERA
    Tiempo de entrega: 7 días
    Condiciones de pago: LC, T/T, Western Union
    Capacidad de la fuente: 100 juegos/mes
    Contactar ahora
    Descripción detallada del producto
    velocidad de detección:: 8 Km/h Distancia medible continua: > 50 km
    Intervalo mínimo de muestreo: 10 milímetros Precisión del sensor: 0.1 mm

    Product Description
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer

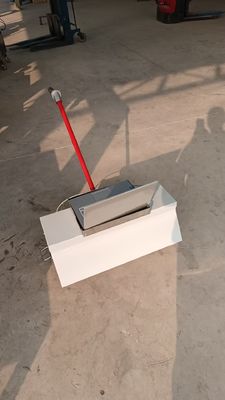

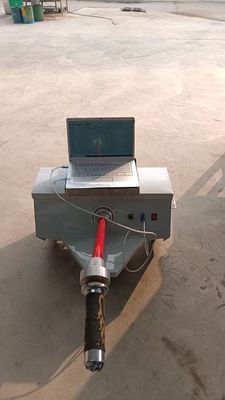

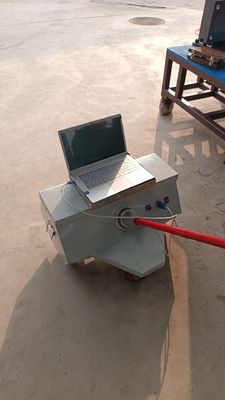

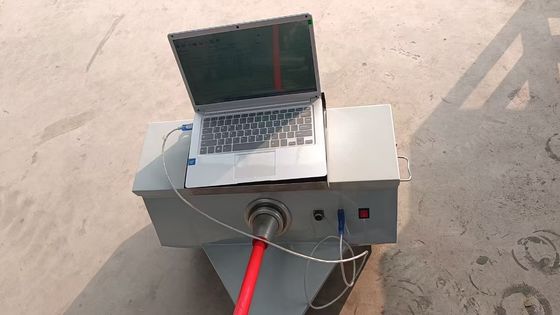

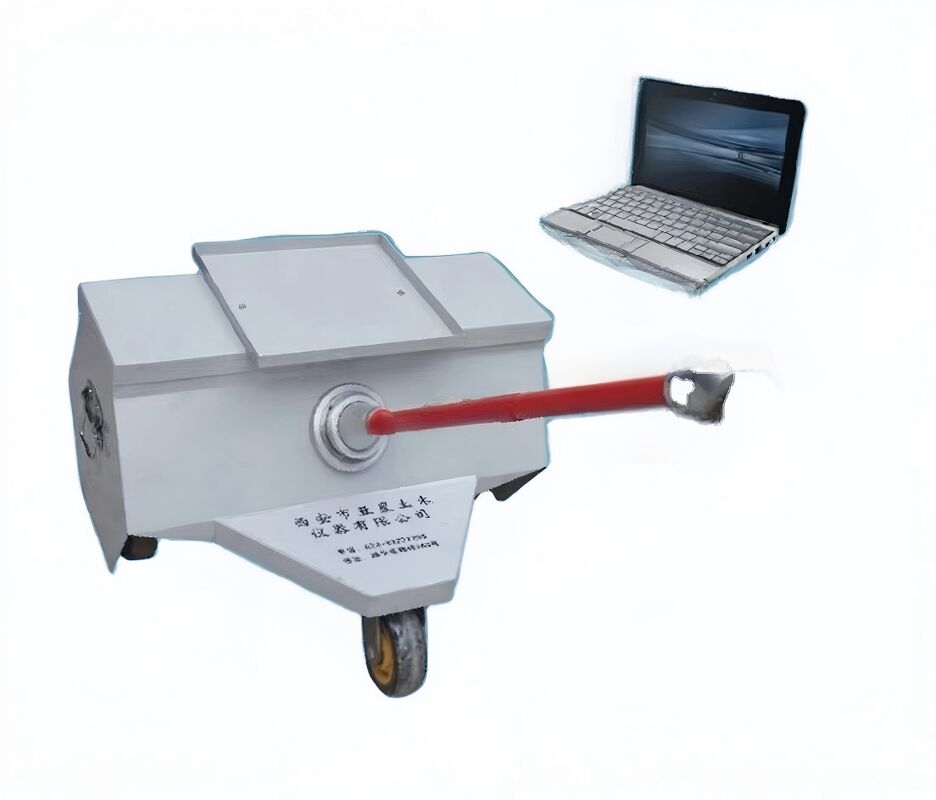

    B002-B Road and Hand push type laser surface International Roughness Index (IRI) tester or Profilometer


    The instrument is a new type of laser flatness gauge developed by xi'an zealchon Civil instrument graduate school on the basis of YLPY - F type and site construction requirements, convenient for construction units to use at any time.

    It can test quality acceptance of the building, rebuilding, pavement engineering and no serious potholes and rutting disease, and the road surface roughness without water, snow, mud and normal traffic detection.

    Precision can be up to 0.01 mm, to measure the surface smoothness of the asphalt, the reliability of generating high speed transmission measurement data into the computer processed by special software,it also can output calculation table and waveform figure .

    Laser flat instrument host computer program is application software mating road flat instrument host supporting, the software can run on Windows XP operating system, for data acquisition, storage, printing and data processing, calculation and generate reports and to facilitate further analysis.

    Technical performance

    1. The flatness of measurable indicators:
    The international roughness index IRI
    Flatness sigma (can be reduced turbulence value)
    2. The output:
    All kinds of index number mileage pile number out-of-tolerance left picture right picture can be set
    All kinds of index curve and the original data
    3. The general technical characteristics:
    Detection speed: 8 km/h continuous measurable distance: > 50 km
    Minimum sampling interval: 10 mm
    Sensor precision: 0.1 mm
    Operating temperature: 0 ℃ ~ 50 ℃
    System power supply: DC 12 V
    Between the bottom of the laser sensor and the clear distance pavement: 100 mm (testing)
    Detection range: IRI: 0-100 m and other detection distance can be set
    Test repeatability: deviation factor: CV < 3%
    Parameter
    Detection speed
    20 km/h - 100 km/h
    Continuous measurable distance
    > 50 km
    Minimum sampling interval
    10 mm
    Sensor precision
    0.1 mm
    The number of operators (including the driver)
    1-2 people
    Operating temperature
    0 ℃ to 50 ℃
    System power supply
    DC 12 V
    Between the bottom of the laser sensor and the clear distance pavement
    100 mm (testing)
    Detection range: TRI
    0-100 m and other detection distance can be set
    Test repeatability
    Deviation factor: CV < 3%
    Related products
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    Company Profile
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    After-service
    B002-B Road and Hand Push Type Laser Surface International Roughness Index (IRI) Tester or Profilometer
    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

    2.What can you buy from us?
    Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

    3.How can we guarantee quality?
    Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

    4. Why should you buy from us not from other suppliers?
    We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
    Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
    Language Spoken:English,Chinese,Spanish,Japanese
    Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
