A62 50kn Automatic Bitumen Marshall Stability Testing Machine

A62 50kn Automatic Bitumen Marshall Stability Testing Machine

    • A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    • A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    • A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    • A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    • A62 50kn Automatic Bitumen Marshall Stability Testing Machine
  • A62 50kn Automatic Bitumen Marshall Stability Testing Machine

    Datos del producto:

    Lugar de origen: Porcelana
    Nombre de la marca: zealchon
    Certificación: CE ISO
    Número de modelo: a062

    Pago y Envío Términos:

    Cantidad de orden mínima: 1 juego
    Precio: $4200
    Detalles de empaquetado: caja de madera
    Tiempo de entrega: 7 días
    Condiciones de pago: LC, D/P, T/T, Western Union
    Capacidad de la fuente: 100 juegos/mes
    Contactar ahora
    Descripción detallada del producto
    Tamaño de muestra: 152,4 mm ± 0,2 mm, distancia entre los penetradores superiores e inferiores 19,05 mm ± 0,1 mm; curva Carga axial: 0 ~ 50kN ± F.S 0,5%
    Adquisición de desplazamiento axial: sensor de desplazamiento incorporado rango 0-15 mm precisión: 0,01 mm (4) Velocidad de deformación: Tasa de estrés: 1N ~ 5000N / S. La tensión constante se puede ajustar
    movimiento axial: 0 ~ 60mm, se puede establecer distancia ascendente

    Product Description

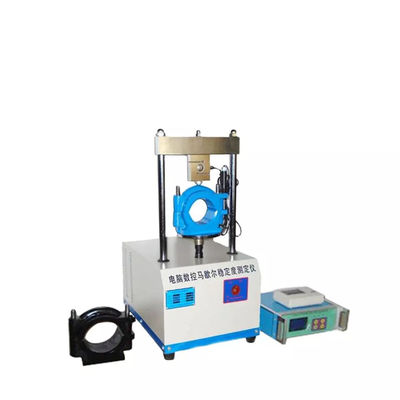

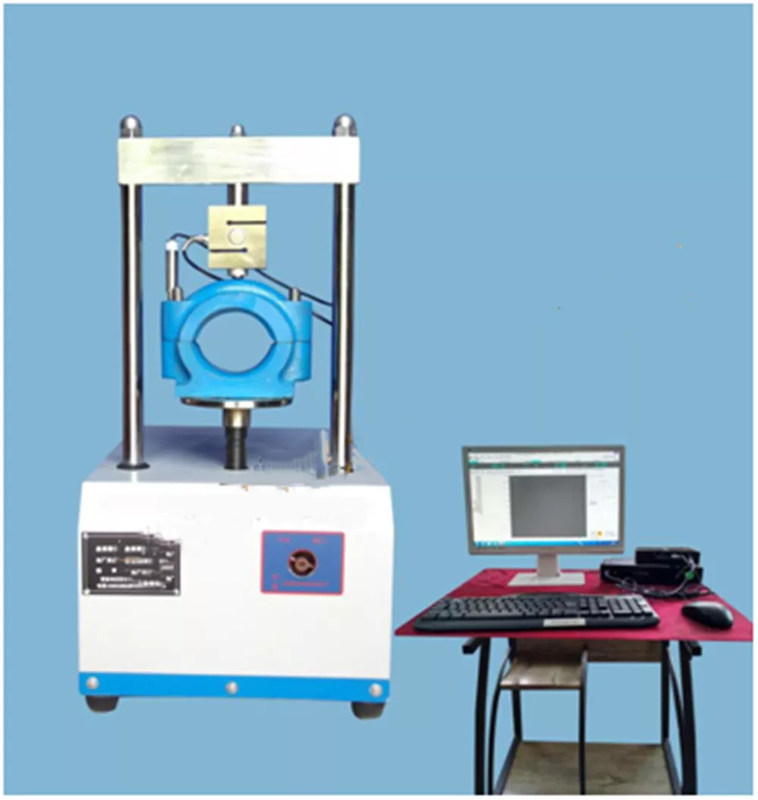

    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 30kn Automatic Digital Standard Bitumen Marshall Stability Testing Machine

    This model is used in Marshall stability test and immersed Marshall stability test to carry out asphalt mixture mix ratio design or asphalt pavement construction quality inspection. Water-immersed Marshall stability test (vacuum-saturated water Marshall test can also be performed as required) for checking the ability of the asphalt mixture to resist spalling when damaged by water. The possibility of designing the mixture ratio by testing its water stability.

    It is used to determine the thermal stability and resistance to plastic deformation of asphalt mixtures-stability and flow value. Provide accurate basis for the design of asphalt mixture composition. It can realize the measurement of stability and flow value.
    Specification
    Technical Parameters
    Parameter Names
    Details
    Sample size: curvature inner diameter
    152.4mm ± 0.2mm, distance between upper and lower indenters 19.05mm ± 0.1mm; curvature inner diameter 101.6mm ± 0.08mm, distance
    between upper and lower indenters 19.05mm ± 0.1mm
    Axial load
    0 ~ 50kN ± F.S 0.5%
    Axial displacement acquisition
    built-in displacement sensor range 0-15mm accuracy: 0.01mm
    (4) Strain speed: 0.001 ~ 50 mm / min
    Stress rate
    1N ~ 5000N / S. Constant stress can be set
    Axial stroke
    0 ~ 60mm, can be set ascending distance

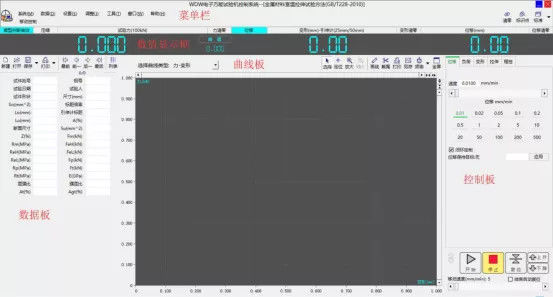

    Computer software

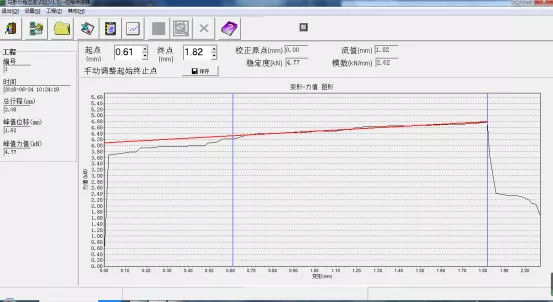

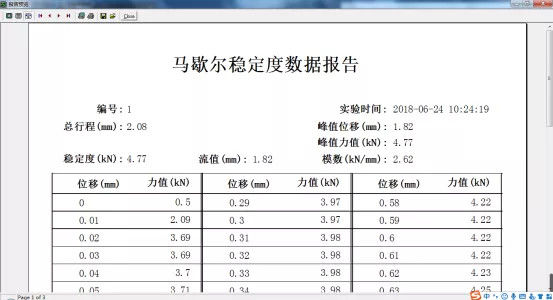

    real-time control of loading speed, force value, acquisition and storage of axial force value, displacement, and parallel graphics
    Sample indenter calibration and sample loading and unloading device are randomly arranged
    Related products
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    Company Profile
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    After-service
    A62 50kn Automatic Bitumen Marshall Stability Testing Machine
    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

    2.What can you buy from us?
    Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

    3.How can we guarantee quality?
    Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

    4. Why should you buy from us not from other suppliers?
    We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

    5. What services can we provide?
    Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;
    Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.
    Language Spoken:English,Chinese,Spanish,Japanese
    Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
