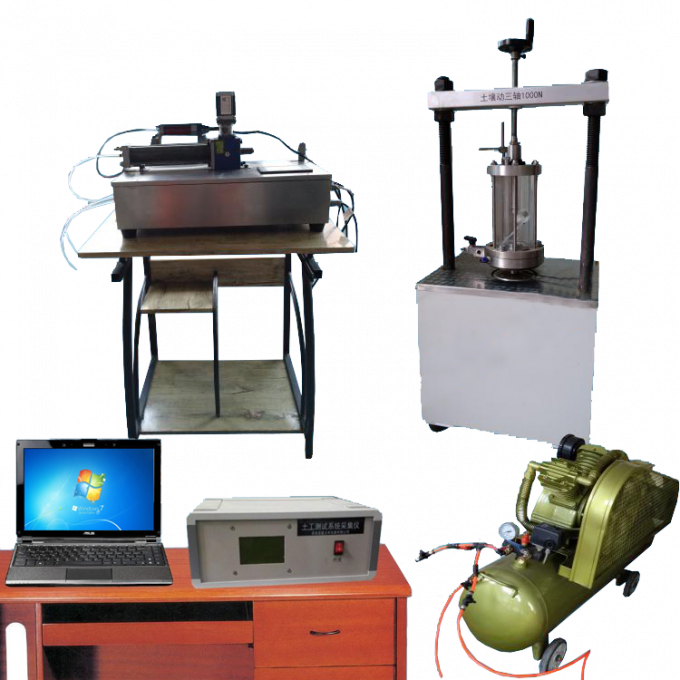

C115 Soil Triaxial Resonance Column Tester for Soil Lab

C115 Soil Triaxial Resonance Column Tester for Soil Lab

C115 Soil Triaxial Resonance Column Tester for Soil Lab

Datos del producto:

Lugar de origen: PORCELANA
Nombre de la marca: zealchon
Certificación: CE ISO
Número de modelo: C115

Pago y Envío Términos:

Cantidad de orden mínima: 1 conjunto
Precio: $55000
Detalles de empaquetado: Caja de madera
Tiempo de entrega: 7 días
Condiciones de pago: L/C, T/T, Western Union, Moneygram
Capacidad de la fuente: 100sets/mes
Contactar ahora
Descripción detallada del producto
Fuerza: Electrónico Fuerza fuerte: 0 ~ 50 nm
presión de los poros: 0~1MPa La presión confinada: de 0 a 1 MPa

Product Description
C115 Soil Triaxial Resonance Column Tester for Soil Lab
Specification
C115 Soil triaxial resonance column tester

The purpose of this test is to determine the dynamic shear modulus and damping ratio or dynamic elastic modulus and damping ratio of the sample under cyclic loading and small strain. This test adopts steady-state forced vibration method and free vibration method. The excitation mode is rotational vibration and longitudinal vibration. For this test, it is advisable to prepare more than 3 samples with the same properties and conduct the test under different ambient pressures. The ambient pressure should be determined according to the actual project. Generally use 100, 200, 300, 400KPa.
Suitable for saturated sand, silt and clay
Technical Parameters 1. Strong force 0~50Nm, precision 0.01Nm, any setting, constant dynamic 2. Pore pressure 0~1MPa 3. The confining pressure can be set arbitrarily from 0 to 1 MPa 4. Vibration frequency 0~10Hz 5. Amplitude 0.08~1.2mm 6. Computer real-time acquisition display, recording, drawing images, data export 7. Sample size: φ50×100mm.

item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
China

Shaanxi
Brand Name
ZEALCHON
Model Number
C1156
Power
Electronic
Strong force
0~50Nm
Pore pressure
0~1MPa
The confining pressure
from 0 to 1 MPa
Vibration frequency
0~10Hz
Amplitude
0.08~1.2mm
Packing & Delivery
C115 Soil Triaxial Resonance Column Tester for Soil Lab
