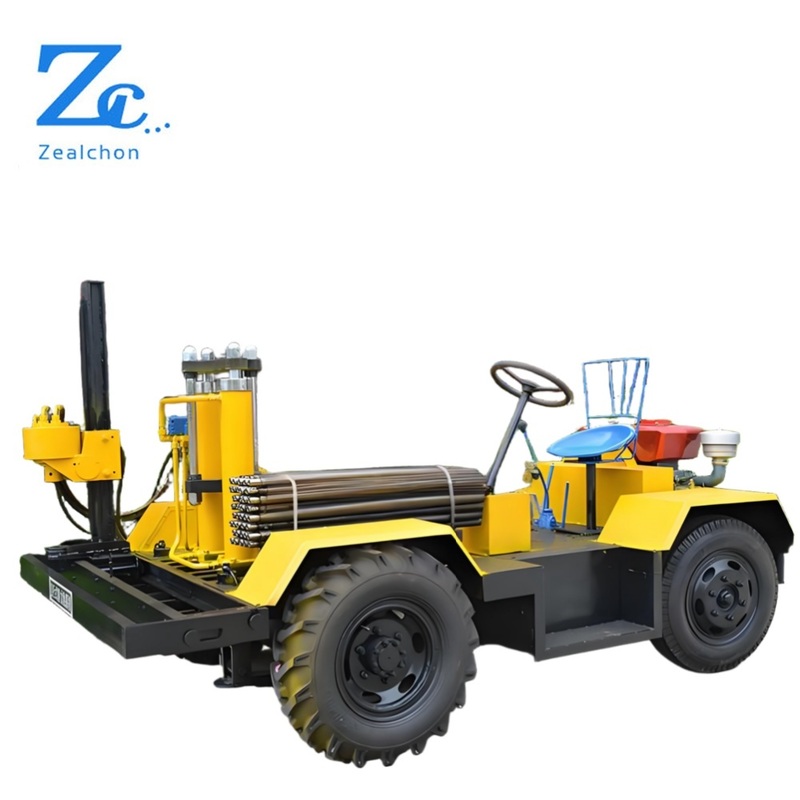

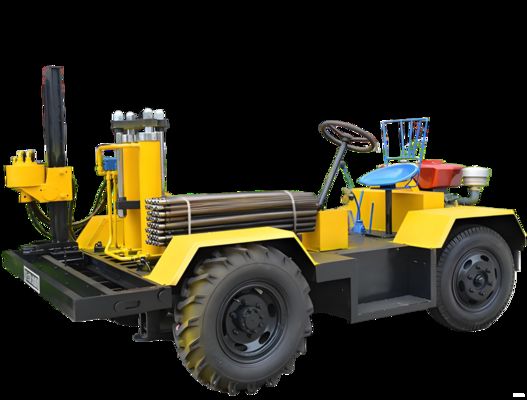

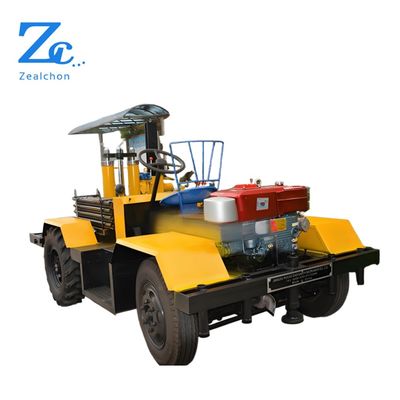

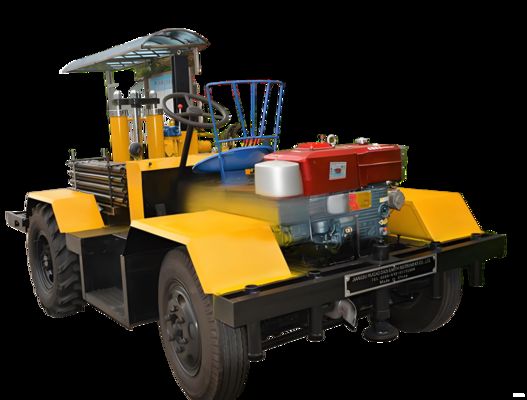

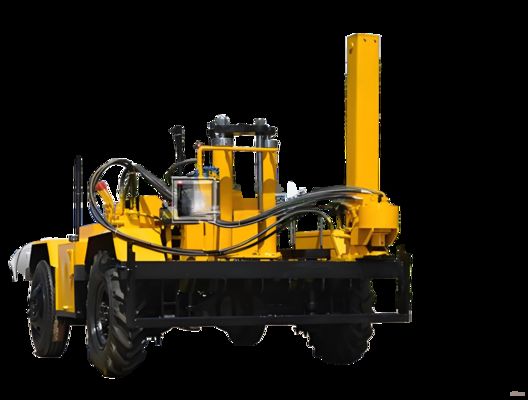

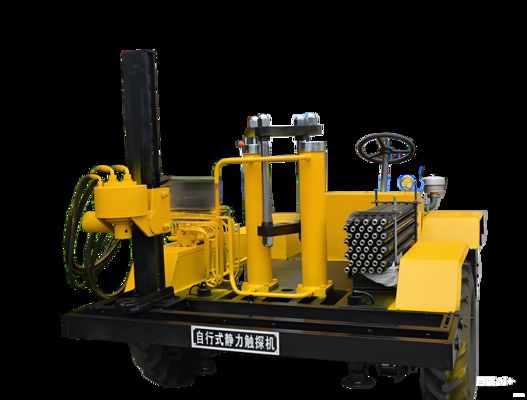

Name: 200kn Tracked Vehicle Soil Hydraulic CPT Static Cone Penetrometers Cptu Investigation Soil
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: DYLE
Price: 22000 USD
Availability: InStock

Inicio Productos Máquina de prueba del suelo

200kn Tracked Vehicle Soil Hydraulic CPT Static Cone Penetrometers Cptu Investigation Soil

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	zealchon
Certificación:	CE ISO
Número de modelo:	DYLE

Pago y Envío Términos:

Cantidad de orden mínima:	1 juego
Precio:	$22000
Detalles de empaquetado:	Caja de madera
Tiempo de entrega:	7DÍAS
Condiciones de pago:	LC, T/T, Western Union, MoneyGram
Capacidad de la fuente:	100sets/mes

Contactar ahora

Descripción detallada del producto

MOTOR:	motor diesel de un solo cilindro 180 de cuatro tiempos de refrigeración por agua horizontal	Potencia nominal - velocidad:	5.67KW-2600r / min
Dispositivo de cilindro hidráulico CPT:	fuerza de penetración nominal de 200KN	Fuerza clasificada del tirón:	240kn
Ataque:	570m m

Product Description

Soil Hydraulic CPT Static Cone Penetrometers


Features:

This CPT truck is used hydraulic excavators and crawler chassis bracing, it can walk in the beach, flood, sand, paddy and other harsh environment to carry out CPT job, icy roads can still walk.

It has applied the advanced hydraulic technology, using a combination of sub-chip multi-valve, compact structure, small size, easy installation, low pressure loss, overload characteristics of a good relief.

The CPT car can a machine is not only ideal for static cone penetration test, configure attachment may extend for CPTU (CPTU), since drilling pressuremeter (PMT), Vane (VCT), pressure-velocity (WVT) and other in-situ test trials.

The biggest advantage: fuel-efficient, saving manpower, high performance, high efficiency Under the country's first fully hydraulic rotary anchoring device (patent number: 201220081488.1 and patent number: 201220081492.8 configuration core barrel and drill Opening hardened concrete pavement etc.) and self-loading and unloading trucks devices (patent number: 201220382939.5), efficient and durable structure Compact, convenient and quick.

It only needs small power diesel engines for the whole vehicle power system, on a large extent, it reduced the fuel consumption and maintenance costs.

The operator can boot side edge flapper, safe and save manpower, at least two individuals can be a normal operation, it can greatly improve the work efficiency.

Parameter

Engine	single cylinder 180 diesel engine horizontal four stroke water cooling
Rated power - speed	5.67KW-2600r / min
CPT hydraulic cylinder device	rated penetration force 200KN
Rated pull force	240KN
Stroke	570mm
Weight	180 kg
Ground anchor form	single leaf or multi-leaf anchor anchor
Maximum working environment Permissible temperature:	45 ° C
Supporting probe	10cm2
Measuring instruments	static data collection or automatic collection of European and American brands

Testing results
