    Datos del producto:

    Lugar de origen: Porcelana
    Nombre de la marca: zealchon
    Certificación: CE ISO
    Número de modelo: C038-A

    Pago y Envío Términos:

    Cantidad de orden mínima: 1 juego
    Precio: $12000
    Detalles de empaquetado: CAJA DE MADERA
    Tiempo de entrega: 7 días
    Condiciones de pago: LC, T/T, Western Union
    Capacidad de la fuente: 100 juegos/mes
    Contactar ahora
    Descripción detallada del producto
    Tamaño de la muestra de suelo: 100 mm de diámetro exterior 60 mm de diámetro interior 20 mm de alto, área de muestra: 50,27 cm2, va Carga neumática servo radial vertical: 0-10KN, ajustable según el área de muestra requerida, constante.
    Sensor de corte del par: : 0-50N. metro ± 0,1N. metro Voltaje: 220 V, 24 V, 50 Hz

    Product Description
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    Specification
    C077-B Soil Automatic Ring Shear Direct Shear Tester

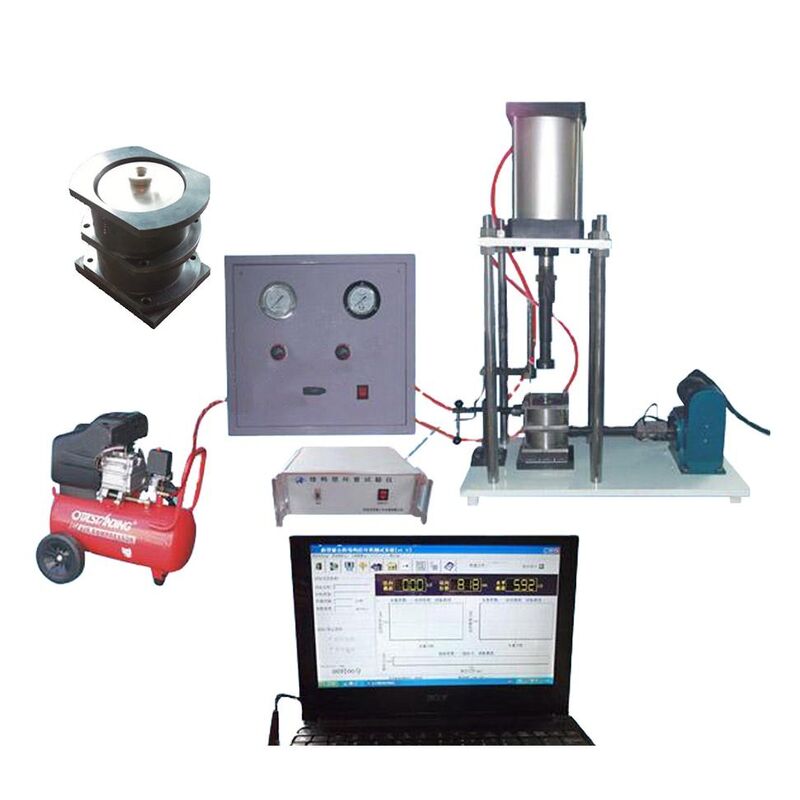

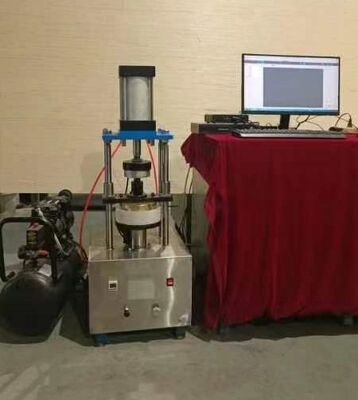

    The equal-strain control type direct shear instrument is used to measure the shear strength of soil. Usually, a specimen is used to apply shear force to shear under different vertical pressures. The shear stress at failure is obtained, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law. The instrument consists of a direct shear tester host, a pressure control system, a direct shear acquisition controller, an air pump, and host computer software. The direct shear controller displays the vertical pressure, shear force and displacement, and the speed can be set. The software can run under the Windows operating system, which can realize Automatic extraction, storage, printing, exporting and other functions of data acquisition instrument. Technical Parameters 1. Vertical loading: 0~10KN accuracy 0.005% 2. Pressurization method: cylinder pressurization. The pressure is loaded step by step according to the sample area, and the pressure is constant. 3. Shear force: 0~5KN (±10N) 4. Specimen size: ¢61.8×20mm 5. Limit displacement travel: 30mm Accuracy: 0.01mm 6. Shearing speed: 0~30mm/min can be set arbitrarily
    item
    value
    Warranty
    1 Year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    ZEALCHON
    Model Number
    C077-B
    Power
    Electronic
    Vertical loading
    0~10KN accuracy 0.005%
    Shear force:
    0~5KN (±10N)
    Specimen size
    61.8*20mm
    Limit displacement travel
    30mm Accuracy: 0.01mm
    Shearing speed
    0~30mm/min
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
